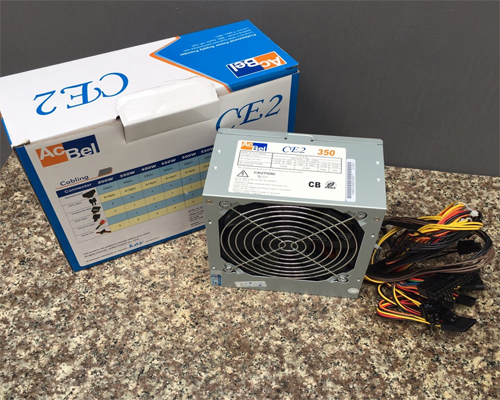

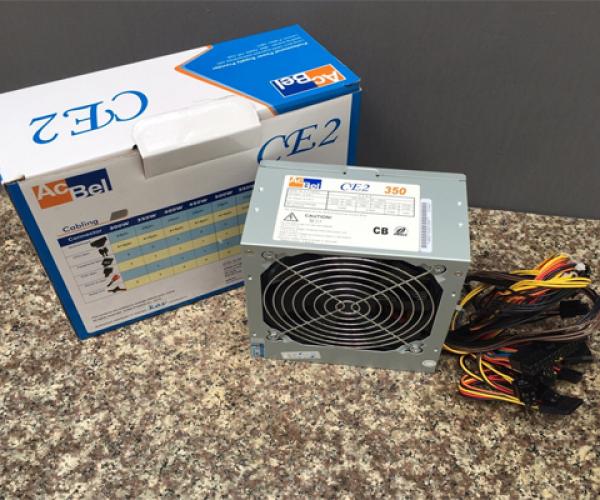

AcBel CE2 350W Fan 12cm công suất thực - BH 36 tháng

VI TINH NAM HAI

Giấy Chứng Nhận ĐKHKD: 41C8011130

Địa chỉ: 590/8 CMT8 - P11 - Q3 - TPHCM

Hotline: 0983.238.705

INPUT SPEC.
Input Voltage Range	220~230Vac
Input Frequency Range	50Hz
Leakage Current	3.5mA@230V/50Hz
AC Input Current	6A@230V
EMI/RFI	CISPR 22 at 230Vac/50Hz

OUTPUT SPEC.
Rated Power	300W
Max. Power	350W
Efficiency	75% above@230Vac
OVP	+3.3V:4.5V, +5V:7V, +12V1: 16V, +12V2: 16V
SCP	Latch off all main outputs reset by cycling on/off control or AC power
OPP	330W~420W (110%~140%)

GENERAL SPEC.
Hold-up Time	16ms@max. load 230Vac/50Hz
Dimensions	150 x 140 x 86 (mm)
MTBF	100Khrs
Output Rise Time	0.2~20ms
PG Signal Rise Time	10ms max.

ENVIRONMENTAL SPEC.
Operating Temperature	10 ~ 45°C
Storage Temperature	-40 ~ 70°C
