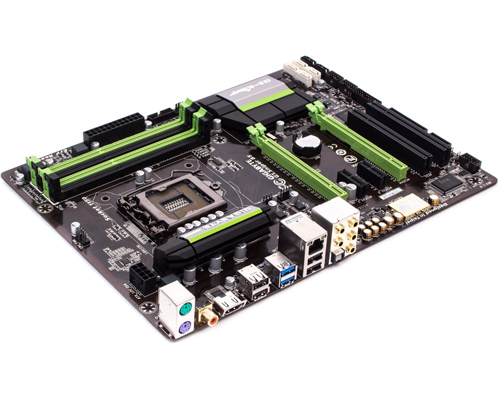

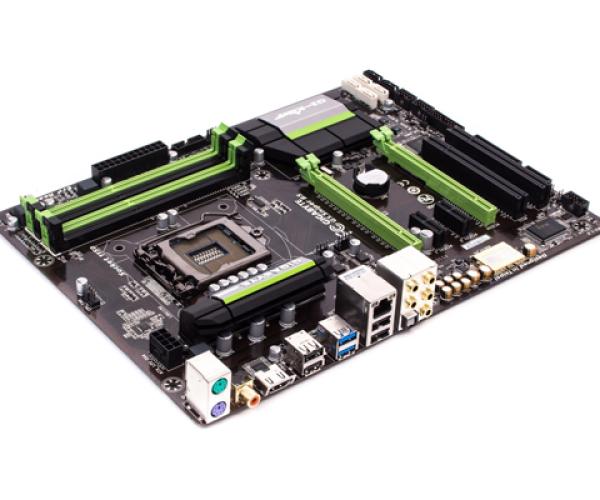

Gigabyte G1.Sniper B5 Chipset B85

Giá:
Call VNĐ
0983238705 0983238705

VI TINH NAM HAI

Giấy Chứng Nhận ĐKHKD: 41C8011130

Địa chỉ: 590/8 CMT8 - P11 - Q3 - TPHCM

Hotline: 0983.238.705

CPU
1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron®processors in the LGA1150 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel® B85 Express Chipset
Bộ nhớ
1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
  * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 1600/1333 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Card đồ họa tích hợp
Integrated Graphics Processor - Intel® HD Graphics support:
1. 1 x HDMI port, supporting a maximum resolution of 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz
  * Support for HDMI 1.4a version.
2. Maximum shared memory of 1 GB
Âm thanh
1. Realtek® ALC898 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF In
5. Support for S/PDIF Out
LAN
1. Intel® GbE LAN chip (10/100/1000 Mbit)
Khe cắm mở rộng
1. 1 x PCI Express x16 slot, running at x16
  (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 2 x PCI Express x1 slots
  (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
4. 2 x PCI slots
Giao diện lưu trữ
Chipset:
1. 4 x SATA 6Gb/s connectors (SATA3 0~SATA3 3) supporting up to 4 SATA 6Gb/s devices
2. 2 x SATA 3Gb/s connectors (SATA2 4~SATA2 5) supporting up to 2 SATA 3Gb/s devices
Công nghệ đa card đồ họa
1. Support for AMD CrossFire™ technology
USB
Chipset:
1. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
2. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Kết nối I/O bên trong
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 2 x SATA 3Gb/s connectors
5. 1 x CPU fan header
6. 3 x system fan headers
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 1 x S/PDIF In header
11. 1 x USB 3.0/2.0 header
12. 2 x USB 2.0/1.1 headers
13. 1 x serial port header
14. 1 x parallel port header
15. 1 x Clear CMOS jumper
Kết nối bảng phía sau
1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x coaxial S/PDIF Out connector
4. 1 x HDMI port
5. 2 x USB 3.0/2.0 ports
6. 4 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 1 x optical S/PDIF Out connector
9. 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Điều khiển I/O
1. iTE® I/O Controller Chip
Theo dõi phần cứng
1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 2 x 64 Mbit flash
2. Use of licensed AMI EFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất
1. Support for Q-Flash
2. Support for Xpress Install
3. Support for APP Center
  * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
  @BIOS
  EasyTune
  EZ Setup
  USB Blocker
4. Support for ON/OFF Charge
Gói phần mềm
1. Norton® Internet Security (OEM version)
2. Intel® Rapid Start Technology
3. Intel® Smart Connect Technology
4. Intel® Small Business Advantage
5. cFosSpeed
Hệ điều hành
1. Support for Windows 10/8.1/8/7
Hệ số khuôn
1. ATX Form Factor; 30.5cm x 22.5cm
Ghi chú
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
