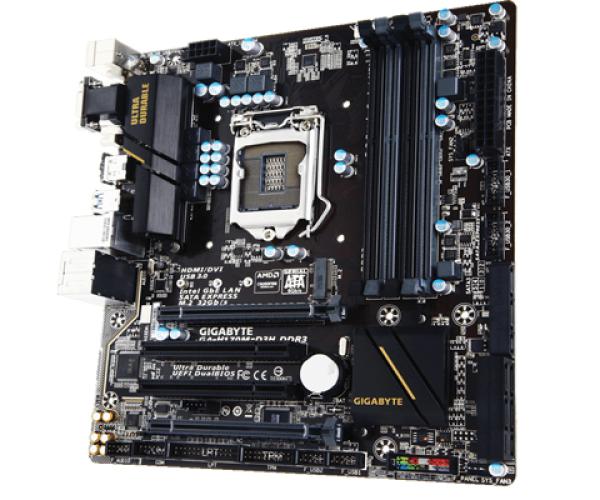

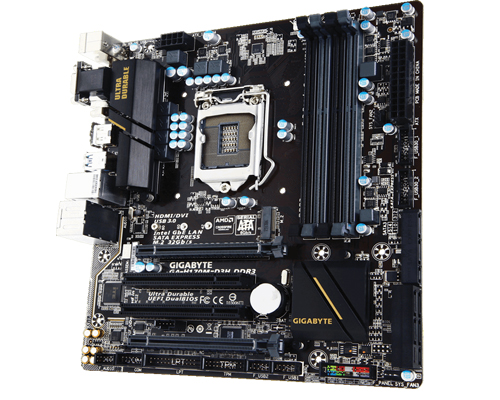

Gigabyte H170M-D3H DDR3 dòng PRO

Giá:
Call VNĐ
0983238705 0983238705

VI TINH NAM HAI

Giấy Chứng Nhận ĐKHKD: 41C8011130

Địa chỉ: 590/8 CMT8 - P11 - Q3 - TPHCM

Hotline: 0983.238.705

CPU
1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel®Celeron® processors in the LGA1151 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel® H170 Express Chipset
Bộ nhớ
1. 4 x DDR3 DIMM sockets supporting up to 64 GB of system memory
  * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3/DDR3L 1866(OC)/1600/1333 MHz memory modules
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8 memory modules
(Please refer "Memory Support List" for more information.)
Card đồ họa tích hợp
Integrated Graphics Processor-Intel® HD Graphics support
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
  * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
  * Support for HDMI 1.4 version.
4. Support for up to 3 displays at the same time
5. Maximum shared memory of 1024 MB
Âm thanh
1. Realtek® ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Intel® GbE LAN chip (10/100/1000 Mbit)
Khe cắm mở rộng
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
3. 2 x PCI slots
Giao diện lưu trữ
Chipset:
1. 1 x M.2 Socket 3 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe x4/x2/x1 SSD support)
2. 2 x SATA Express connectors
3. 6 x SATA 6Gb/s connectors
4. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-7 Internal Connectors," for the supported configurations with the M.2, SATA Express, and SATA connectors.
Công nghệ đa card đồ họa
1. Support for 2-Way AMD CrossFire™ technology
USB
Chipset:
1. 8 x USB 3.0/2.0 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Kết nối I/O bên trong
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x M.2 Socket 3 connector
4. 2 x SATA Express connectors
5. 6 x SATA 6Gb/s connectors
6. 1 x CPU fan header
7. 3 x system fan headers
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x S/PDIF Out header
11. 2 x USB 3.0/2.0 headers
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module (TPM) header
14. 1 x Thunderbolt™ add-in card connector
15. 1 x serial port header
16. 1 x parallel port header
17. 1 x Clear CMOS jumper
Kết nối bảng phía sau
1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 4 x USB 3.0/2.0 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 6 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Side Speaker Out, Line In, Line Out, Mic In)
Điều khiển I/O
1. iTE® I/O Controller Chip
Theo dõi phần cứng
1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  AutoGreen
  Cloud Station
  EasyTune
  Easy RAID
  Fast Boot
  Smart TimeLock
  Smart Keyboard
  Smart Backup
  System Information Viewer
  USB Blocker
2. Support for Q-Flash
3. Support for Smart Switch
4. Support for Xpress Install
Gói phần mềm
1. Norton® Internet Security (OEM version)
2. Intel® Smart Response Technology
3. Intel
  Supports 6th Generation Intel® Core™ Processor

  Dual Channel DDR3, 4 DIMMs

  2-Way Graphics with Premium PCIe Lane

  PCIe Gen3 x4 M.2 Connector with up to 32Gb/s Data Transfer (PCIe & SATA SSD support)

  2 SATA Express Connectors for up to 16Gb/s Data Transfer

  8-channel HD Audio with High Quality Audio Capacitors

  Audio Noise Guard with LED Trace Path Lighting

  Intel® GbE LAN with cFosSpeed Internet Accelerator Software

  APP Center Including EasyTune™ and Cloud Station™ Utilities

  GIGABYTE UEFI DualBIOS™ Technology

  Support Intel® Small Business Advantage
