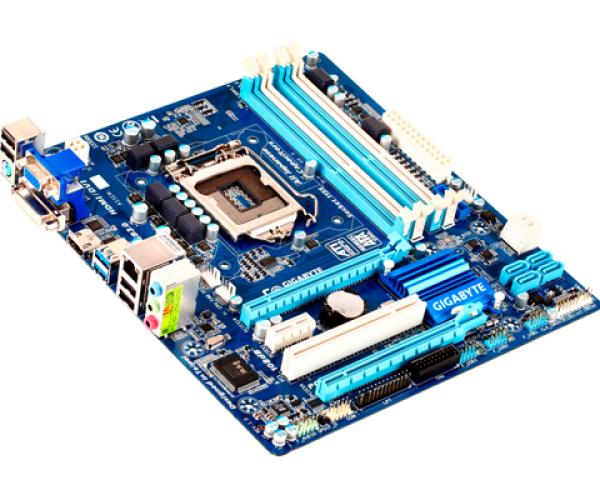

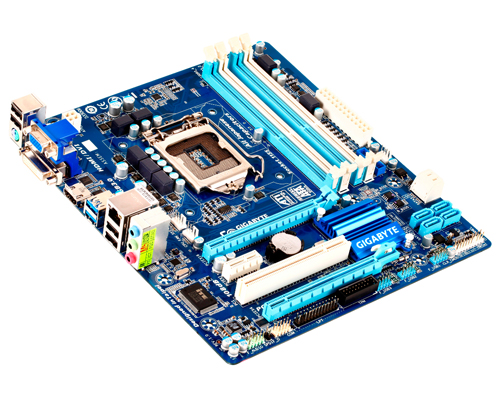

Gigabyte H77 - GA-H77M-D3H

Giá:
Call VNĐ
0983238705 0983238705

VI TINH NAM HAI

Giấy Chứng Nhận ĐKHKD: 41C8011130

Địa chỉ: 590/8 CMT8 - P11 - Q3 - TPHCM

Hotline: 0983.238.705

CPU
1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel®Celeron® processors in the LGA1155 package
2. L3 cache varies with CPU
(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
Chipset
1. Intel® H77 Express Chipset
Bộ nhớ
1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
  * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
2. Dual channel memory architecture
3. Support for DDR3 2200(OC)/1600/1333/1066 MHz memory modules
  * To support DDR3 1600 MHz, you must install an Intel 22nm CPU.
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules
  * To support XMP memory, you must install an Intel 22nm (Ivy Bridge) CPU.
(Please refer "Memory Support List" for more information.)
Card đồ họa tích hợp
Integrated Graphics Processor:
1. 1 x D-Sub port
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
  * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
Âm thanh
1. VIA VT2021 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out
LAN
1. Atheros GbE LAN chip (10/100/1000 Mbit)
Khe cắm mở rộng
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  * The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 1 x PCI Express x1 slot
  (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.)
4. 1 x PCI slot
Giao diện lưu trữ
Chipset:
1. 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices
2. 4 x SATA 3Gb/s connectors (SATA2 2/3/4/5) supporting up to 4 SATA 3Gb/s devices
3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
Công nghệ đa card đồ họa
1. Support for AMD CrossFireX™ technology
USB
Chipset:
1. Up to 10 USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)
2. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
  * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
Kết nối I/O bên trong
1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 2 x SATA 6Gb/s connectors
4. 4 x SATA 3Gb/s connectors
5. 1 x CPU fan header
6. 2 x system fan headers
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 1 x USB 3.0/2.0 header
11. 3 x USB 2.0/1.1 headers
12. 1 x serial port header
13. 1 x parallel port
14. 1 x Trusted Platform Module (TPM) header
15. 1 x Clear CMOS jumper
Kết nối bảng phía sau
1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 2 x USB 3.0/2.0 ports
6. 4 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In/Line Out/Microphone)
Điều khiển I/O
1. iTE I/O Controller Chip
Theo dõi phần cứng
1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
  * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
1. 2 x 64 Mbit flash
2. Use of licensed AMI EFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất
1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress Install
4. Support for Xpress Recovery2
5. Support for eXtreme Hard Drive (X.H.D)
6. Support for Auto Green
7. Support for ON/OFF Charge
8. Support for Q-Share
9. Support for LAN Optimizer (Intelligent optimization network management tool)
Gói phần mềm
1. Norton Internet Security (OEM version)
2. Intel® Rapid Start Technology
3. Intel® Smart Connect Technology
4. Intel® Smart Response Technology
Hệ điều hành
1. Support for Microsoft® Windows 8/7/XP
Hệ số khuôn
1. Micro ATX Form Factor; 24.4cm x 22.0cm

GIGABYTE 3D BIOS (Dual UEFI)
All new design of Ultra Durable 4 classic
Supports 3rd Gen. Intel® 22nm CPUs and 2nd Gen. Intel® Core™ CPUs (LGA1155 socket)
PCI Express Gen 3.0 support
Industry's Leading All Japanese Solid Capacitor Design
GIGABYTE 333™ Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)
2-way CrossFireX™ multi-GPU support
HDMI/ DVI interface for smoother HD video playback
Enhanced Intel HD Graphics 4000/2500 integrated with the processor
GIGABYTE On/Off Charge™ for USB devices
