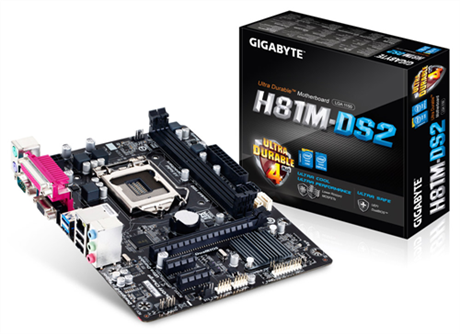

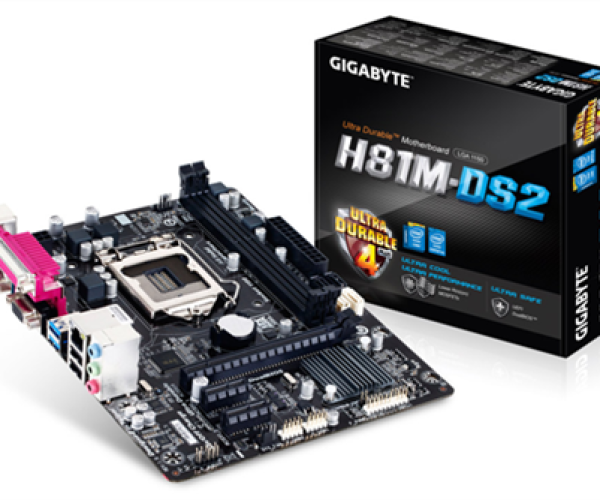

GIGABYTE - H81M-DS2 sk 1150 - bh 36 tháng - SL Call giá tốt hơn

GIGABYTE - H81M-DS2 sk 1150 - bh 36 tháng - SL Call giá tốt hơn

Giá:
Call VNĐ
0983238705 0983238705

VI TINH NAM HAI

Giấy Chứng Nhận ĐKHKD: 41C8011130

Địa chỉ: 590/8 CMT8 - P11 - Q3 - TPHCM

Hotline: 0983.238.705

Manufacture (Hãng sản xuất)	GIGABYTE
Socket	Intel Socket 1150
Form Factor	MicroATX (uATX)
Chipset	Intel H81
CPU onboard	Intel Core i7 Processor
CPU Support (Loại CPU hỗ trợ) (1)	• Intel Core i7
CPU Support (Loại CPU hỗ trợ) (2)	• Intel Core i5 • Intel Core i3
Front Side Bus (FSB)	• -
Memory Slot (Số khe cắm ram)	4
Max Memory Support (Gb)	16
Memory Type (Loại Ram sử dụng)	DDR3
Memory Bus	• 1333Mhz • 1600MHz
Internal I/O Connectors (Các kết nối bên trong)	• USB 2.0 connectors • SATA connectors • 24-pin ATX Power connector • 4-pin ATX 12v Power connector • SATA 6Gb/s connectors
Back Panel I/O Ports (Cổng kết nối phía sau)	• PS/2 port • USB 3.0/2.0 ports
Cổng USB và SATA	• USB 2.0 x 2
Expansion Slot (Khe mở rộng)	• -
Other Supports (Công nghệ hỗ trợ khác)	• -
Other Features (Tính năng khác)	Support for Q-Flash Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Support for ON/OFF Charge
Website	Chi tiết

Thông tin thêm về Gigabyte GA-H81M-DS2 (rev. 1.0)

CPU	Support for Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^® processors/Intel^® Celeron^® processors in the LGA1150 package L3 cache varies with CPU (Please refer "CPU Support List" for more information.)
Chipset	Intel^® H81 Express Chipset
Memory	2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 Maximum shared memory of 1 GB
Audio	Realtek^® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN	Realtek^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots	1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots (The PCI Express slots conform to PCI Express 2.0 standard.)
Storage Interface	Chipset: 2 x SATA 6Gb/s connectors (SATA3 0/1) supporting up to 2 SATA 6Gb/s devices 2 x SATA 3Gb/s connectors (SATA2 2/3) supporting up to 2 SATA 3Gb/s devices
USB	Chipset: Up to 2 USB 3.0/2.0 ports on the back panel Up to 6 USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 2 x SATA 6Gb/s connectors 2 x SATA 3Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 2 x USB 2.0/1.1 headers 1 x Clear CMOS jumper
Back Panel Connectors	1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x parallel port 1 x serial port 1 x D-Sub port 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller	iTE^® I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System overheating warning CPU/System fan fail warning CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features	Support for Q-Flash Support for Xpress Install Support for APP Center * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications. @BIOS EasyTune EZ Setup USB Blocker Support for ON/OFF Charge
Bundle Software	Norton^® Internet Security (OEM version)
Operating System	Support for Windows 8/7
Form Factor	Micro ATX Form Factor; 22.6cm x 17cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
