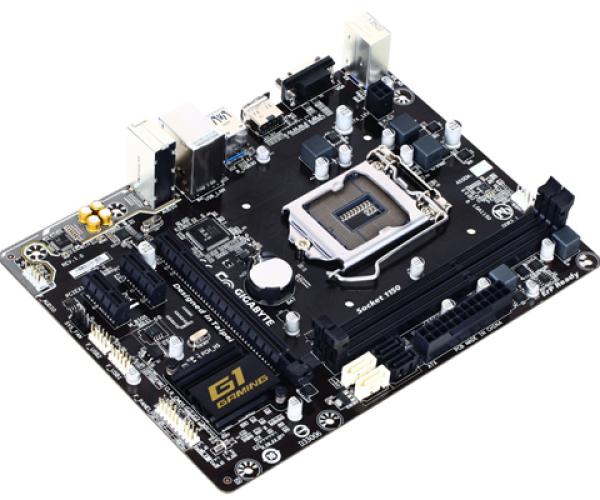

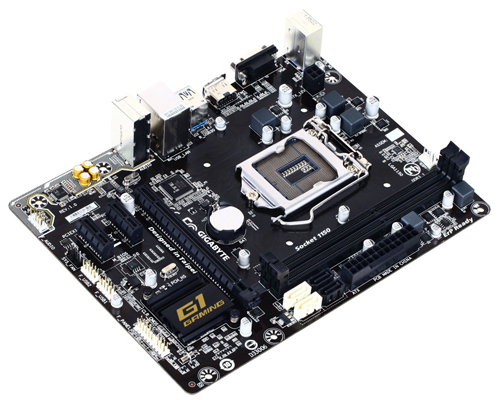

Gigabyte H81M-Gaming 3

Giá:
750.000 VNĐ
0983238705 0983238705

VI TINH NAM HAI

Giấy Chứng Nhận ĐKHKD: 41C8011130

Địa chỉ: 590/8 CMT8 - P11 - Q3 - TPHCM

Hotline: 0983.238.705

U
1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel®Celeron® processors in the LGA1150 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel® H81 Express Chipset
Bộ nhớ
1. 2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
  * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR3 1600/1333 MHz memory modules
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Card đồ họa tích hợp
Integrated Graphics Processor - Intel® HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160
  * Support for HDMI 1.4a version.
3. Maximum shared memory of 1 GB
Âm thanh
1. Realtek® ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
1. Intel® GbE LAN chip (10/100/1000 Mbit)
Khe cắm mở rộng
1. 1 x PCI Express x16 slot, running at x16
2. 2 x PCI Express x1 slots
  (All PCI Express slots conform to PCI Express 2.0 standard.)
Giao diện lưu trữ
Chipset:
1. 2 x SATA 6Gb/s connectors (SATA3 0/1)
2. 2 x SATA 3Gb/s connectors (SATA2 2/3)
USB
Chipset:
1. 2 x USB 3.0/2.0 ports on the back panel
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Kết nối I/O bên trong
1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 2 x SATA 6Gb/s connectors
4. 2 x SATA 3Gb/s connectors
5. 1 x CPU fan header
6. 1 x system fan header
7. 1 x front panel header
8. 1 x front panel audio header
9. 2 x USB 2.0/1.1 headers
Kết nối bảng phía sau
1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x HDMI port
5. 2 x USB 3.0/2.0 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In, Line Out, Mic In)
Điều khiển I/O
1. iTE® I/O Controller Chip
Theo dõi phần cứng
1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 32 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất
1. Support for Q-Flash
2. Support for Xpress Install
3. Support for APP Center
  * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
  @BIOS
  EasyTune
  EZ Setup
  USB Blocker
  Smart TimeLock
  Smart Recovery 2
4. Support for ON/OFF Charge
Gói phần mềm
1. Norton® Internet Security (OEM version)
Hệ điều hành
1. Support for Windows 10/8.1/8/7
Hệ số khuôn
1. Micro ATX Form Factor; 22.6cm x 17.0cm
Ghi chú
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
