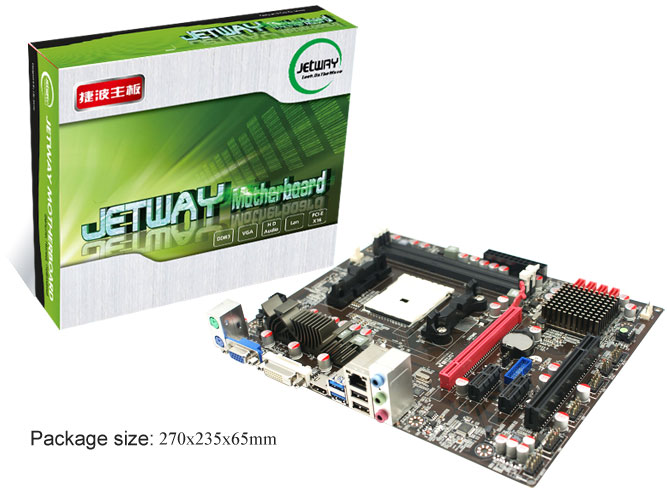

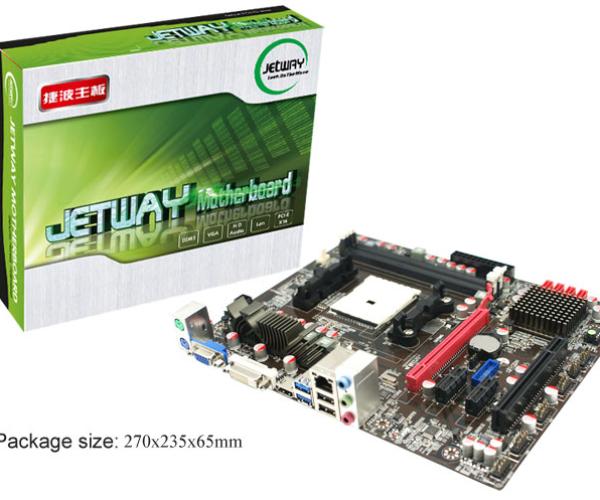

Jetway A75 - Model: TA75MG tích hợp DVI, HDMI, VGA, USB 3.0

 APU

AMD™ Socket FM1:

• Support AMD™ A- & E2- “Lynx” Series APU
• Support AMD™ Turbo Core Technology
• Support AMD Power Now function
• 4+1 Phase CPU Power Support

Chipset

• AMD™ A75 FCH (Hudson D3) Chipset

 Graphics

Lynx Series APU:

• AMD™ Radeon HD 65XX/64XX graphics
• DirectX 11, Pixel Shader 5.0
• Support HDMI 1.4a Technology with max. resolution up to 1920x1200 @60Hz
• Support Dual–link DVI with max. resolution up to 2560x1600 @75Hz
• Support D-Sub with max. resolution up to 1920x1600 @ 60Hz
• Support Steady Video™: New video post processing capability for automatic jutter reduction on home/online video
• Support Bluray Stereoscopic 3D with HDMI 1.4a

Memory

• Dual Channel DDR3 memory technology
• 2 x DDR3 DIMM slots
• Support DDR3 1866/1600/1333/1066 un-buffered memory
• Max. capacity of system memory up to: 8GB

Audio

• VIA VT1705 Audio CODEC
• 5.1 CH HD Audio with Content Protection

LAN

• Realtek® RTL8111EVL chip
• PCI-E Gigabit LAN 10/100/1000Mb/s
• Support PXE

 Expansion Slots

• 1 x PCI Express 2.0 x16 slot
• Support AMD RADEON™ Dual Graphics
• 2 x PCI Express 2.0 x1 slots
• 1 x PCI slot

Storage

A75 FCH (Hudson D3) Chipset:

• 4 x SATA3.0 6Gb/s connectors
• RAID model: Support RAID 0 ,1 and 10
• AHCI model: Support “NCQ” and “Hot Plug” functions

USB

A75 FCH (Hudson D3)Chipset:

• 4 x USB 3.0 ports(2 distribute in back panel, 2 distribute in mid-board)
• 6 x USB 2.0 ports(2 distribute in back panel, 4 distribute in mid-board)

 Internal I / O

• 2 x USB2.0 headers (Support 4 x USB2.0 ports)
• 1 x USB3.0 header (Support 2 x USB3.0 ports)
• CPU / Chassis Fan connectors
• 1x COM header
• 1 x HDMI_SPDIF header
• 1 x Power LED header
• 1 x 24-pin ATX 24V Power connector
• 1 x 4-pin ATX 12V Power connector
• 1 x Front panel audio header

Back Panel I / O

• 1 x PS/2 Keyboard and 1 x PS/2 Mouse
• 1 x D-Sub Port
• 1 x DVI-D Port
• 1 x HDMI Port
• 2 x USB3.0 Ports
• 2 x USB2.0 Ports
• 1 x RJ-45 Port
• 3 x Audio jacks (Line In/Line Out/Microphone)

BIOS

• 16 MB Flash ROM

Accessories

• Manual, DVD, I/O Shield, 2 x SATA Cables

Form Factor

• M-ATX Form Factor:200x245mm
• All Solid Capacitor design
