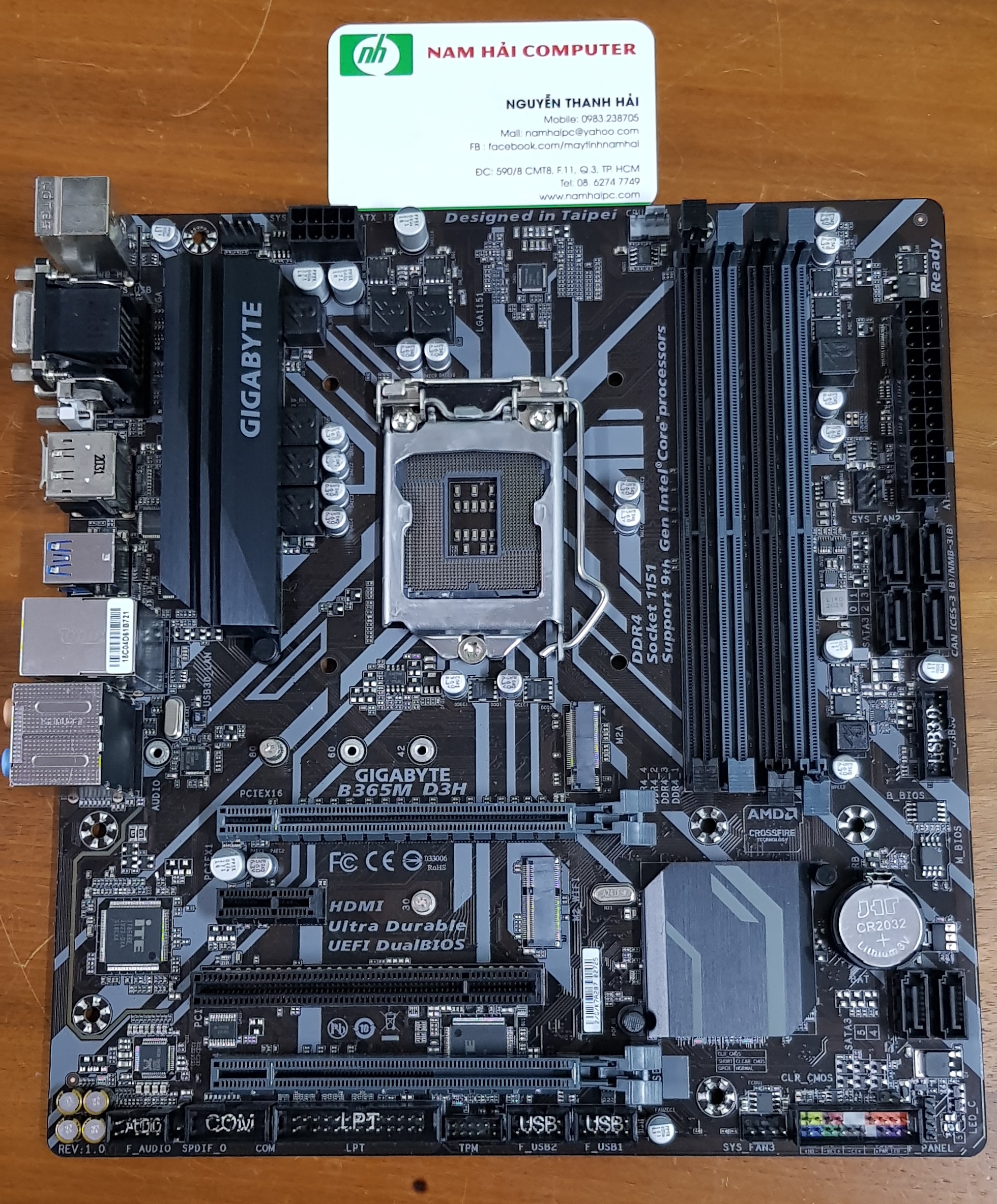

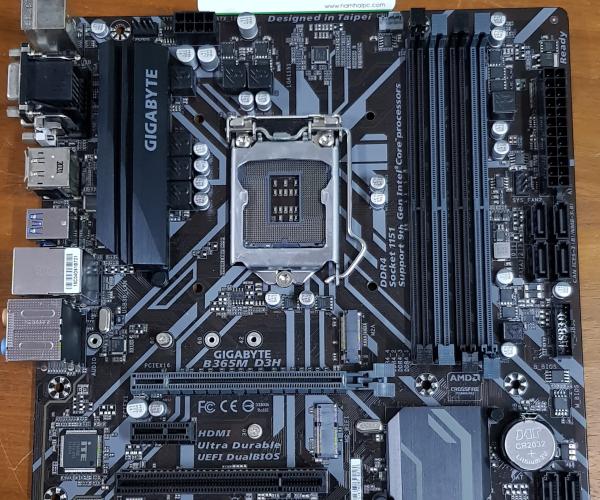

MAIN GIGABYTE B365M D3H, SOCKET 1151, 4 KHE RAM DDR4

Giá:
1.150.000 VNĐ
0983238705 0983238705

VI TINH NAM HAI

Giấy Chứng Nhận ĐKHKD: 41C8011130

Địa chỉ: 590/8 CMT8 - P11 - Q3 - TPHCM

Hotline: 0983.238.705

MAIN GIGABYTE B365M D3H, SOCKET 1151, 4 KHE RAM DDR4
Hãng Gigabyte
Model B365M D3H
Socket 1151
Ram DDR4, 4 khe cắm
Bảo Hành 1 tháng, 1 đổi 1
Liên hệ: 0983 238 705 Mr. Hải

Bo mạch chủ siêu bền Intel B365 với PCIe Gen3 x4 M.2, Intel GbE LAN với khả năng bảo vệ 25KV, hỗ trợ dải LED RGB 7 màu, Điện trở chống lưu huỳnh, Smart Fan5, DualBIOS ™, CEC 2019 đã sẵn sàng

Hỗ trợ bộ xử lý Intel ® Core ™ thế hệ thứ 9 và thứ 8
Kênh đôi DDR4 không có bộ đệm ECC không có bộ đệm
Thiết kế PWM kỹ thuật số hỗn hợp mới
Tụ âm thanh chất lượng cao và chống ồn âm thanh với đèn LED chiếu sáng đường dẫn
M.2 siêu nhanh với giao diện PCIe Gen3 X4 & SATA
RGB FUSION hỗ trợ dải LED RGB với 7 màu
Intel ® GbE LAN với Phần mềm tăng tốc Internet cFosSpeed
CEC 2019 đã sẵn sàng, Tiết kiệm điện năng dễ dàng chỉ với một cú nhấp chuột
Quạt thông minh 5 có nhiều cảm biến nhiệt độ và đầu cắm quạt lai với FAN STOP
Thiết kế điện trở chống lưu huỳnh
Bảo vệ mạng LAN siêu bền ™ 25KV và mạng lan truyền đột biến 15KV
Sẵn sàng cho Bộ nhớ Intel ® Optane ™
GIGABYTE UEFI DualBIOS ™

CPU
1. Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel® B365 Express Chipset
Bộ nhớ
1. 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
2. Dual channel memory architecture
3. Support for DDR4 2666/2400/2133 MHz memory modules
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
  * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.
(Please refer "Memory Support List" for more information.)
Card đồ họa tích hợp
Integrated Graphics Processor-Intel® HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
3. * The DVI-D port does not support D-Sub connection by adapter.
4. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
  * Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
5. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
  * Support for HDMI 1.4 version and HDCP 2.2.
Support for up to 3 displays at the same time
Maximum shared memory of 1 GB
Actual support may vary by CPU
Âm thanh
1. Realtek® ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF Out
LAN
1. Intel® GbE LAN chip (10/100/1000 Mbit)
Khe cắm mở rộng
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
3. 1 x PCI Express x1 slot
  (All of the PCI Express slots conform to PCI Express 3.0 standard.)
4. 1 x PCI slot
5. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Công nghệ đa card đồ họa
1. Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Giao diện lưu trữ
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
2. 6 x SATA 6Gb/s connectors
3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
  * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
Intel® Optane™ Memory Ready
USB
Chipset:
1. 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 1 support
2. 5 x USB 3.1 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
3. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Kết nối I/O bên trong
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 3 x system fan headers
5. 1 x RGB LED strip header
6. 1 x M.2 Socket 3 connector
7. 6 x SATA 6Gb/s connectors
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x S/PDIF Out header
11. 1 x USB 3.1 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
14. 1 x serial port header
15. 1 x parallel port header
16. 1 x Clear CMOS jumper
Kết nối bảng phía sau
1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x DisplayPort
5. 1 x HDMI port
6. 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
7. 3 x USB 3.1 Gen 1 ports
8. 2 x USB 2.0/1.1 ports
9. 1 x RJ-45 port
10. 6 x audio jacks
Điều khiển I/O
1. iTE® I/O Controller Chip
Theo dõi phần cứng
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 2 x 128 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  @BIOS
  AutoGreen
  Cloud Station
  EasyTune
  Easy RAID
  Fast Boot
  Game Boost
  ON/OFF Charge
  Platform Power Management
  RGB Fusion
  Smart Backup
  Smart Keyboard
  System Information Viewer
  USB Blocker
2. Support for Q-Flash
3. Support for Xpress Install
Gói phần mềm
1. Norton® Internet Security (OEM version)
2. cFosSpeed
Hệ điều hành
1. Support for Windows 10 64-bit
Hệ số khuôn
1. Micro ATX Form Factor; 24.4cm x 23.0cm
Ghi chú
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
