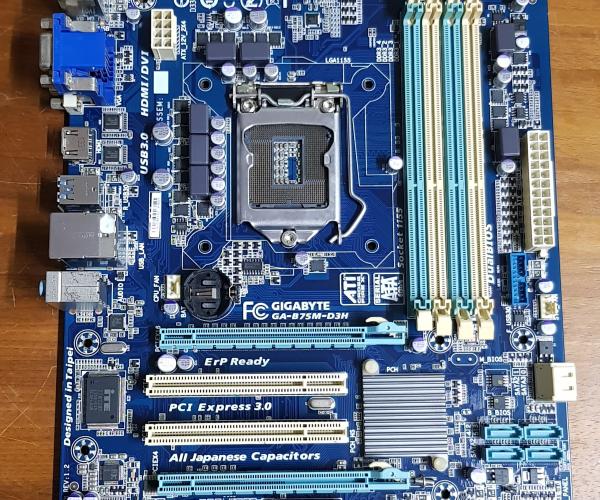

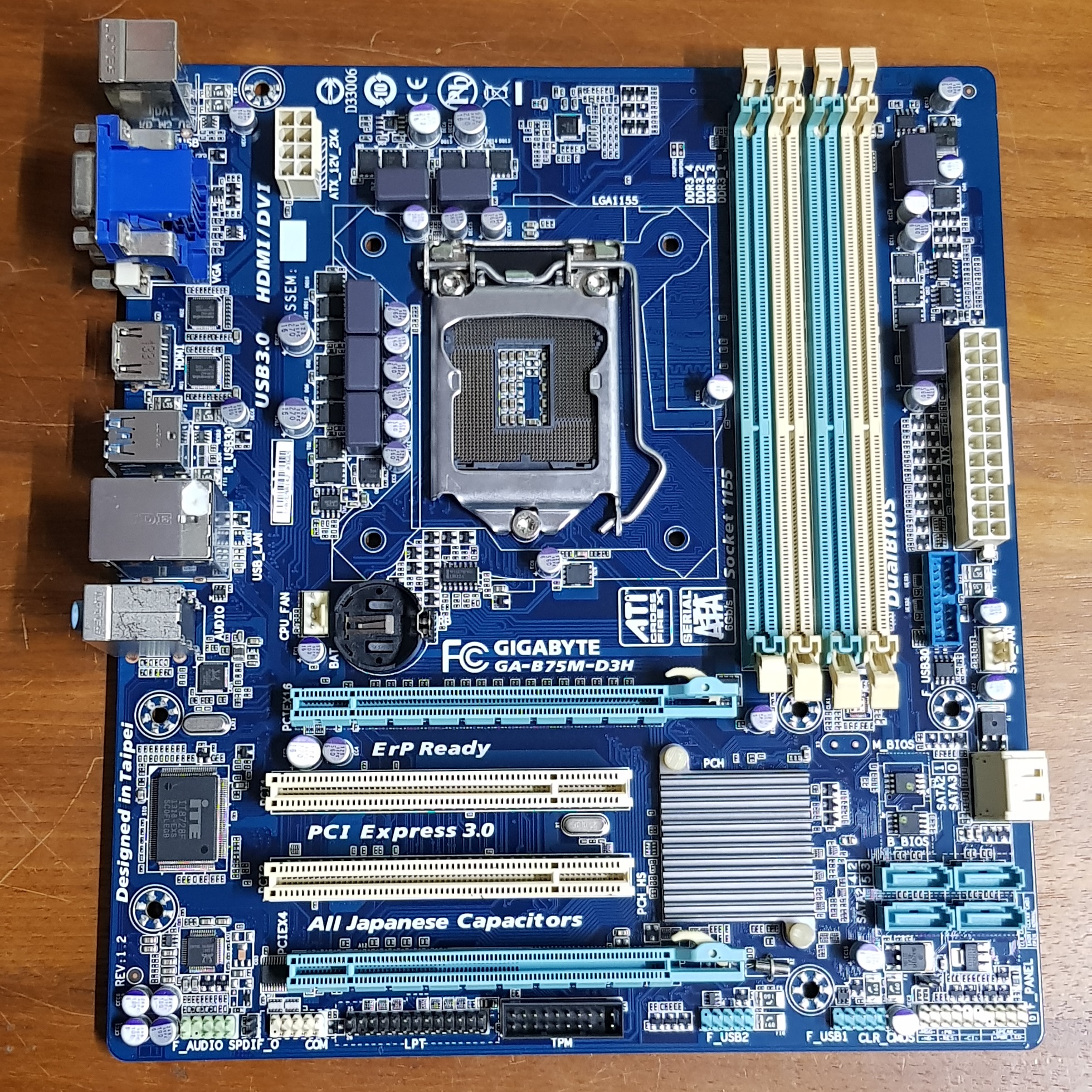

MAIN GIGABYTE GA-B75M-D3H/SOCKET 1155/DDR3 4 KHE

Giá:
850.000 VNĐ
0983238705 0983238705

VI TINH NAM HAI

Giấy Chứng Nhận ĐKHKD: 41C8011130

Địa chỉ: 590/8 CMT8 - P11 - Q3 - TPHCM

Hotline: 0983.238.705

MAIN GIGABYTE GA-B75M-D3H/SOCKET 1155/DDR3 4 KHE
HÃNG GIGABYTE
MODEL: GA-B75M-D3H
SOCKET 1155
RAM HỖ TRỢ DDR3, 4 KHE CẮM
BẢO HÀNH 1 THÁNG
-------
LIÊN HỆ:
VI TÍNH NAM HẢI
ĐỊA CHỈ: 590/8, CMT8 P11 Q3
ĐIỆN THOẠI: 0983.238.705

CPU
1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1155 package
2. L3 cache varies with CPU
(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
Chipset
1. Intel® B75 Express Chipset
Bộ nhớ
1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
  * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
2. Dual channel memory architecture
3. Support for DDR3 2200(OC)/1600/1333/1066 MHz memory modules
  * To support DDR3 1600 MHz, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.
4. Support for non-ECC memory modules
5. Support for Extreme Memory Profile (XMP) memory modules
  * To support XMP memory, you must install an Intel® 22nm (Ivy Bridge) CPU that supports DDR3 1600 MHz.
(Please refer "Memory Support List" for more information.)
Card đồ họa tích hợp
Integrated Graphics Processor:
1. 1 x D-Sub port
2. 1 x DVI-D port, supporting a maximum resolution of 1920x1200
  * The DVI-D port does not support D-Sub connection by adapter.
3. 1 x HDMI port, supporting a maximum resolution of 1920x1200
Âm thanh
1. Realtek ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out
LAN
1. 1 x Realtek GbE LAN chip (10/100/1000 Mbit)
Khe cắm mở rộng
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
  (The PCIEX16 slot conforms to PCI Express 3.0 standard.)
  * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  * The PCI Express x16 slot supports up to PCI Express 2.0 standard when an Intel 32nm (Sandy Bridge) CPU is installed.
2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
  (The PCIEX4 slot conforms to PCI Express 2.0 standard.)
3. 2 x PCI slots
Công nghệ đa card đồ họa
1. Support for AMD CrossFireX™ technology
Giao diện lưu trữ
Chipset:
1. 1 x SATA 6Gb/s connector (SATA3 0) supporting up to 1 SATA 6Gb/s device
2. 5 x SATA 3Gb/s connectors (SATA2 1~5) supporting up to 5 SATA 3Gb/s devices
USB
Chipset:
1. Up to 8 USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
2. Up to 4 USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
  * In Windows XP, the Intel USB 3.0 ports can support up to USB 2.0 transfer speed.
Kết nối I/O bên trong
1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x SATA 6Gb/s connector
4. 5 x SATA 3Gb/s connectors
5. 1 x CPU fan header
6. 1 x system fan header
7. 1 x front panel header
8. 1 x front panel audio header
9. 1 x S/PDIF Out header
10. 1 x USB 3.0/2.0 header
11. 2 x USB 2.0/1.1 headers
12. 1 x serial port header
13. 1 x parallel port
14. 1 x Trusted Platform Module (TPM) header
15. 1 x Clear CMOS jumper
Kết nối bảng phía sau
1. 1 x PS/2 keyboard/mouse port
2. 1 x D-Sub port
3. 1 x DVI-D port
4. 1 x HDMI port
5. 2 x USB 3.0/2.0 ports
6. 4 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In/Line Out/Microphone)
Điều khiển I/O
1. iTE I/O Controller Chip
Theo dõi phần cứng
1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
  * Whether the CPU/system fan speed control function is supported will depend on the CPU/system cooler you install.
BIOS
1. 2 x 64 Mbit flash
2. Use of licensed AMI EFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất
1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress Install
4. Support for Xpress Recovery2
5. Support for Auto Green
6. Support for ON/OFF Charge
7. Support for Q-Share
8. Support for LAN Optimizer (Intelligent optimization network management tool)
Gói phần mềm
1. Norton Internet Security (OEM version)
2. Intel® Rapid Start Technology
3. Intel® Smart Connect Technology
4. Intel® Small Business Advantage
Hệ điều hành
1. Support for Microsoft® Windows 8/7/XP
Hệ số khuôn
1. Micro ATX Form Factor; 24.4cm x 22.0cm
