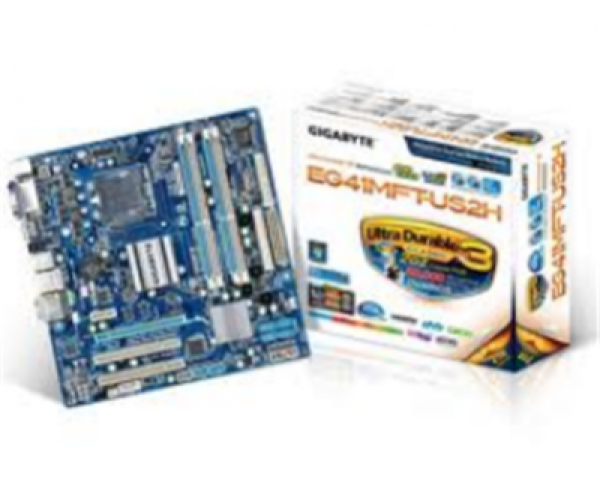

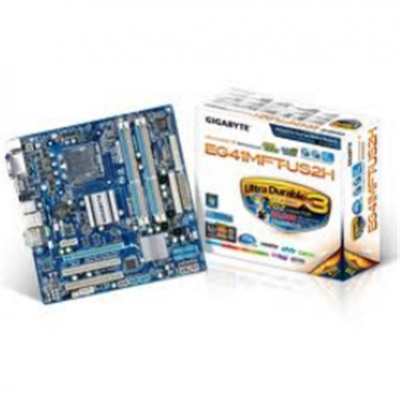

Main Gigabyte GA-EG41MFT-US2H

1. Support for an Intel® Core™ 2 Extreme processor/ Intel® Core™ 2 Quad processor/Intel® Core™ 2 Duo processor/Intel® Pentium® Dual-Core processo/Intel® Celeron® processor in the LGA 775 package
2. L2 cache varies with CPU

1. 1333/1066/800 MHz FSB

1. North Bridge: Intel® G41 Chipset
2. South Bridge: Intel® ICH7

1. 4 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory (Note 1)
2. Dual channel memory architecture (Note 2)
3. Support for DDR3 1333(OC)/1066/800 MHz memory modules

* Because of Intel chipset limitation, please use single-side memory module if four memory modules are to be installed.

North Bridge:

1. 1 x D-Sub port
2. 1 x DVI-D port (Note 3) (Note 4)
3. 1 x HDMI port (Note 4)

1. Realtek ALC888 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
4. Support for S/PDIF In/Out
5. Support for CD In

1. Realtek 8111D chip (10/100/1000 Mbit)

1. 1 x PCI Express x16 slot, running at x 16 (Note 4)
2. 1 x PCI Express x1 slot
3. 2 x PCI slots

South Bridge:

1. 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices
2. 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

iTE IT8718 chip:

1. 1 x floppy disk drive connector supporting up to 1 floppy disk drive

1. Integrated in the South Bridge
2. Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets connected to the internal USB headers)

1. T.I. TSB43AB23 chip
2. Up to 2 IEEE 1394a ports (1 on the back panel, 1 via the IEEE 1394a bracket connected to the internal IEEE 1394a header)

1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 1 x floppy disk drive connector
4. 1 x IDE connector
5. 4 x SATA 3Gb/s connectors
6. 1 x CPU fan header
7. 1 x system fan header
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x CD In connector
11. 1 x S/PDIF In header
12. 1 x S/PDIF Out header
13. 2 x USB 2.0/1.1 headers
14. 1 x IEEE 1394a header
15. 1 x serial port header
16. 1 x clearing CMOS jumper

1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x DVI-D port (Note 3)(Note 4)
5. 1 x HDMI port (Note 4)
6. 1 x optical S/PDIF Out connector
7. 4 x USB 2.0/1.1 ports
8. 1 x IEEE 1394a port
9. 1 x RJ-45 port
10. 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line out/Microphone)

1. iTE IT8718 chip

1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control (Note 5)

1. 2 x 8 Mbit flash
2. Use of licensed AWARD BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

1. Support for @BIOS
2. Support for Q-Flash
3. Support for Xpress BIOS Rescue
4. Support for Download Center
5. Support for Xpress Install
6. Support for Xpress Recovery2
7. Support for EasyTune (Note 6)
8. Support for Dynamic Energy Saver Advanced
9. Support for Time Repair
10. Support for Q-Share

1. Norton Internet Security (OEM version)

1. Support for Microsoft® Windows Vista/XP

1. Micro ATX Form Factor; 24.4cm x 24.4cm

(Note 1) Due to Windows Vista/XP 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
(Note 2) Due to a chipset limitation, to avoid the system being unable to start or the memory being incor­rectly detected, if only one memory module is to be installed, we suggest that you install it on the DDR3_1 or DDR3_3 socket; to install two memory modules, we suggest that you install them on the DDR3_1 and DDR3_3 sockets. when all four memory slots are populated with DDR3 1066 MHz modules, the memory speed will drop down to 800 MHz. (Go to GIGABYTE's website for the latest memory support list.)
(Note 3) The DVI-D port does not support D-Sub connection by adapter.
(Note 4) The PCI Express x16 slot share the PCI Express x16 bus with the HDMI and the DVI-D ports. When the PCI Express x16 slot is in use, the HDMI and the DVI-D ports become unavailable.
(Note 5) Whether the CPU/System fan speed control function is supported will depend on the CPU/ System cooler you install.
(Note 6) Available functions in EasyTune may differ by motherboard model.

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.
