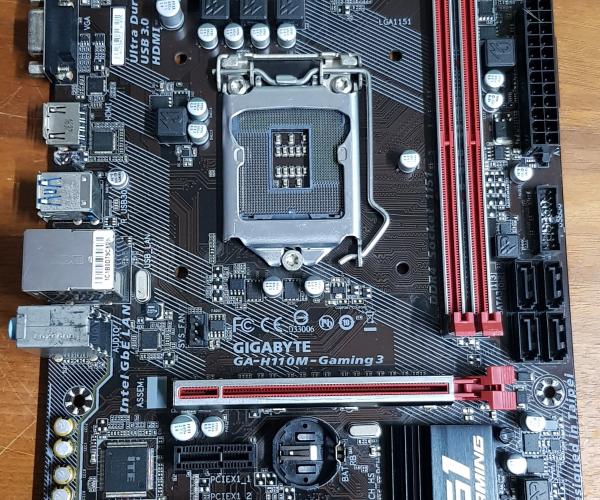

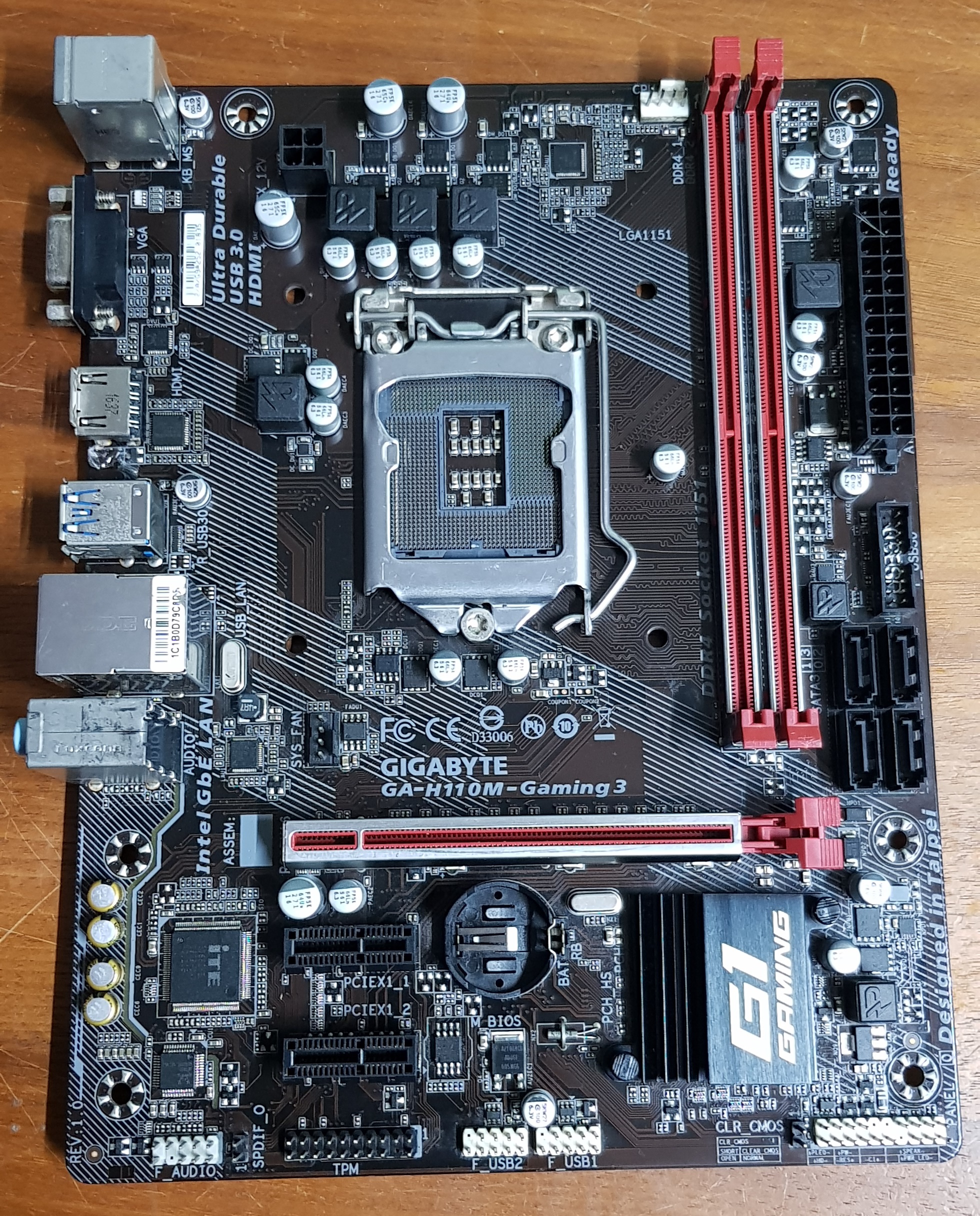

MAIN GIGABYTE GA-H110M-GAMING3/SOCKET1151, 2KHE CẮM RAM DDR4

Giá:
650.000 VNĐ
0983238705 0983238705

VI TINH NAM HAI

Giấy Chứng Nhận ĐKHKD: 41C8011130

Địa chỉ: 590/8 CMT8 - P11 - Q3 - TPHCM

Hotline: 0983.238.705

MAIN GIGABYTE GA-H110M-GAMING3/SOCKET1151, 2KHE CẮM RAM DDR4
MAIN HÃNG GIGABYTE
MODEL GA-H110M-GAMING3
SOCKET: 1151
RAM HỖ TRỢ DDR4
BẢO HÀNH: 1 THÁNG, 1 ĐỔI 1
LIÊN HỆ: VI TÍNH NAM HẢI
590/8 CMT8, P11 Q3
ĐIỆN THOẠI: 0983 238 705 MR. HẢI

Hỗ trợ bộ xử lý Intel® Core ™ thế hệ thứ 7/6
Kênh đôi DDR4, 2 DIMM
Bảo vệ kim loại siêu bền trên các khe cắm PCIe và DDR
Âm thanh HD 8 kênh với tụ âm thanh chất lượng cao
Chống ồn âm thanh với đèn LED chiếu sáng theo đường dẫn
Cổng HDMI 1.4, D-sub cho nhiều màn hình
Intel ® GbE LAN với Phần mềm tăng tốc Internet cFosSpeed
Tất cả Trung tâm ứng dụng GIGABYTE ™ mới, sử dụng đơn giản và dễ dàng
Hỗ trợ Kiến thức cơ bản về Doanh nghiệp Nhỏ của Intel ®

CPU
1. Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
  * For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel® H110 Express Chipset
Bộ nhớ
1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 2400/2133 MHz memory modules
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
(Please refer "Memory Support List" for more information.)
Card đồ họa tích hợp
Integrated Graphics Processor-Intel® HD Graphics support
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz
  * Support for HDMI 1.4 version.
Support for up to 2 displays at the same time
Maximum shared memory of 1024 MB
Âm thanh
1. Realtek® ALC892 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out
LAN
1. Intel® GbE LAN chip (10/100/1000 Mbit)
Khe cắm mở rộng
1. 1 x PCI Express x16 slot, running at x16
  (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2. 2 x PCI Express x1 slots
  (The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Giao diện lưu trữ
Chipset:
1. 4 x SATA 6Gb/s connectors
USB
Chipset:
1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Kết nối I/O bên trong
1. 1 x 24-pin ATX main power connector
2. 1 x 4-pin ATX 12V power connector
3. 4 x SATA 6Gb/s connectors
4. 1 x CPU fan header
5. 1 x system fan header
6. 1 x front panel header
7. 1 x front panel audio header
8. 1 x S/PDIF Out header
9. 1 x USB 3.0/2.0 header
10. 2 x USB 2.0/1.1 headers
11. 1 x Trusted Platform Module (TPM) header
12. 1 x Clear CMOS jumper
Kết nối bảng phía sau
1. 1 x PS/2 keyboard port
2. 1 x PS/2 mouse port
3. 1 x D-Sub port
4. 1 x HDMI port
5. 2 x USB 3.0/2.0 ports
6. 2 x USB 2.0/1.1 ports
7. 1 x RJ-45 port
8. 3 x audio jacks (Line In, Line Out, Mic In)
Điều khiển I/O
1. iTE® I/O Controller Chip
Theo dõi phần cứng
1. System voltage detection
2. CPU/System temperature detection
3. CPU/System fan speed detection
4. CPU/System overheating warning
5. CPU/System fan fail warning
6. CPU/System fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Tính năng duy nhất
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  AutoGreen
  Cloud Station
  EasyTune
  Fast Boot
  ON/OFF Charge
  Smart TimeLock
  Smart Keyboard
  Smart Backup
  System Information Viewer
  USB Blocker
2. Support for Q-Flash
3. Support for Smart Switch
4. Support for Xpress Install
Gói phần mềm
1. Norton® Internet Security (OEM version)
2. cFosSpeed
Hệ điều hành
1. Windows® 10 64-bit (for 7th Generation Intel® Processors)
2. Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)
  * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Hệ số khuôn
1. Micro ATX Form Factor; 22.6cm x 17.4cm
Ghi chú
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
