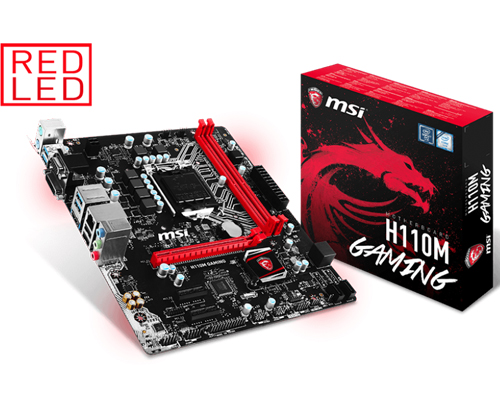

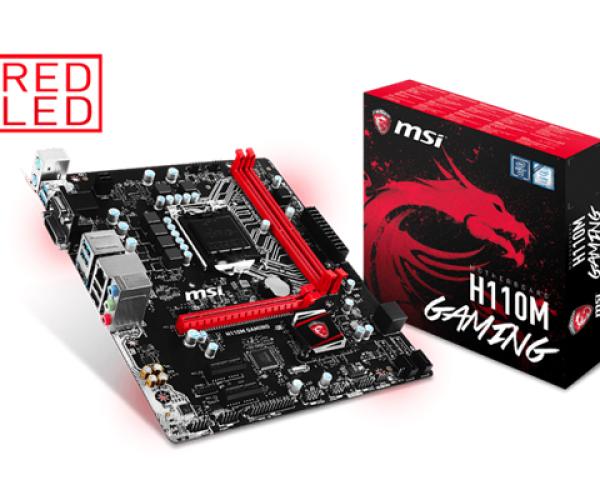

MSI H110M GAMING - Full Box

CPU

• Supports 6th Gen Intel® Core™ i3/i5 processors, and Intel® Pentium® and Celeron® processors for Socket LGA1151


Chipset

• Intel® H110 Chipset


Main Memory

• 2 x DDR4 memory slots, support up to 32GB
- Supports DDR4 2133 MHz *
• Dual channel memory architecture
* Please refer to www.msi.com for more information on compatible memory.

Slots

• 1 x PCIe 3.0 x16 slot
• 2 x PCIe 2.0 x1 slots


Onboard Graphics

• 1x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz, 2560x1600@60Hz
• 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz
• 1x VGA port, supports a maximum resolution of 1920x1200@60Hz


Storage

• Intel® H110 Chipset
• 4 x SATA 6Gb/s ports

USB

• Intel® H110 Chipset
• 6x USB 3.1 Gen1 (SuperSpeed USB) ports (4 ports on the back panel, 2 ports available through the internal USB connector)
• 6x USB 2.0 (High-speed USB) ports (2 ports on the back panel, 4 ports available through the internal USB connectors)


Audio

• Realtek® ALC887 Codec
- 7.1-Channel High Definition Audio


LAN

• 1 x Intel I219V Gigabit LAN controller



Internal I/O Connectors


Back Panel I/O Ports

- 1x PS/2 keyboard port
- 1 x PS/2 mouse port
- 2 x USB 2.0 ports
- 4 x USB 3.1 Gen1 ports
- 1 x DVI-D port
- 1 x HDMI™ port
- 1x VGA port
- 1 x LAN (RJ45) port
- 3 x audio jacks


Dimension

• 9.6 in. x 8.1 in. (24.3 cm x 20.6 cm)
• mATX Form Factor


Mounting

• 6 mounting holes
