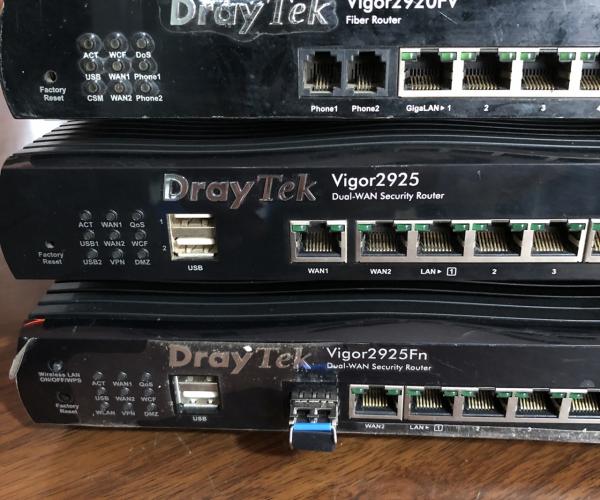

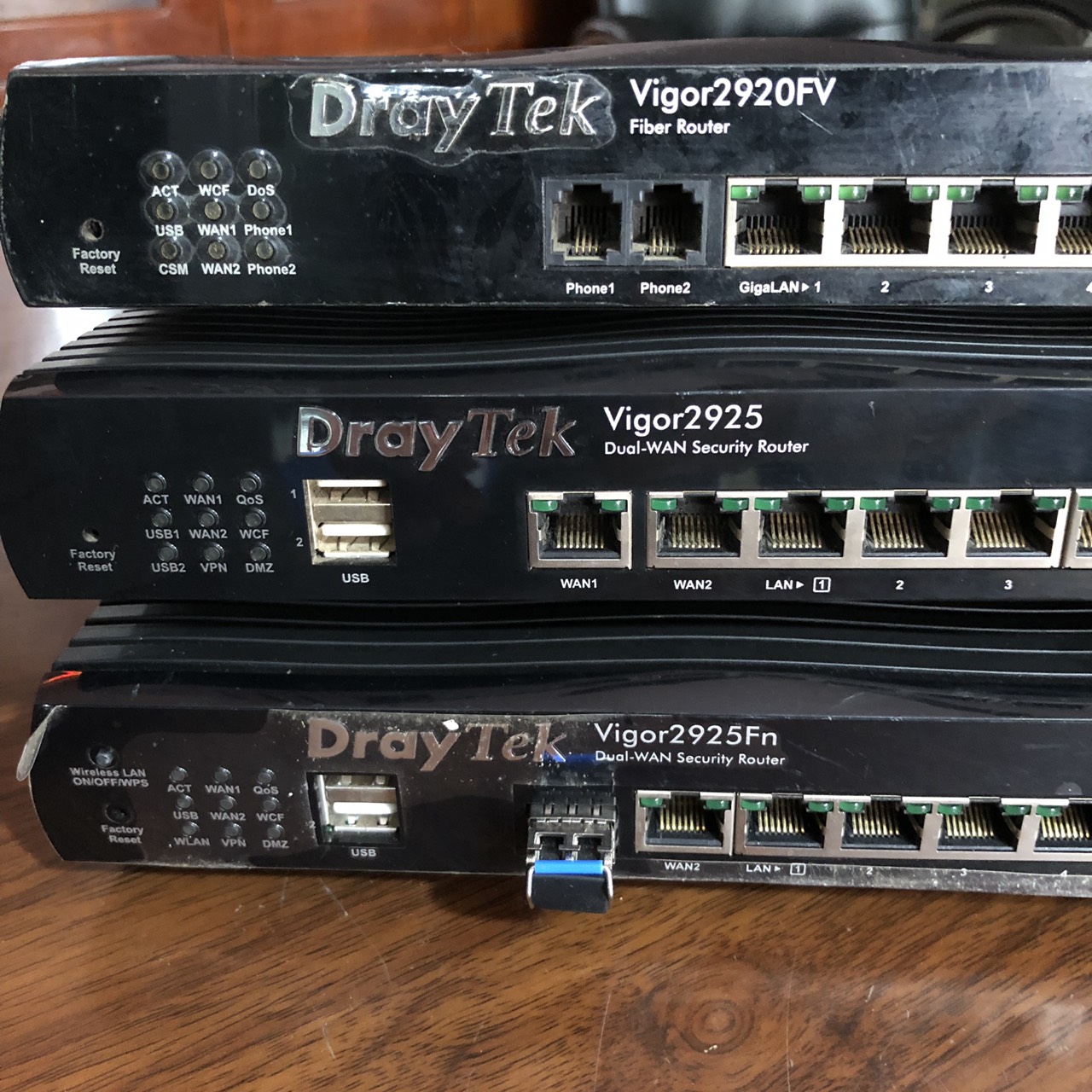

DrayTek Vigor2925 - Khả năng chịu tải 80 users

• 2 x 1000Base-TX, RJ-45 (WAN1/WAN2)
• 5 x 10/100/1000Base-TX LAN, RJ-45
• 2 x USB Host 2.0

DC 12V / 1.5A

• 1 x Factory Reset Button
• 1 x Wireless On/Off/ WPS Button

L241 * W165 * H44 (mm)

WAN Protocol

• Giga Ethernet (WAN1 & WAN2)
  • DHCP Client
  • Static IP
  • PPPoE
  • PPTP/L2TP (WAN-2 only)
  • PPPoA (ADSL2 only)
  • 802.1q Multi-VLAN Tagging
• USB (WAN3 & WAN4)
  • PPP/DHCP
• IPv6
  • Tunnel Mode: TSPC, AICCU, 6rd, Static 6in4
  • Dual Stack: PPP, DHCPv6 Client, Static IPv6

Multi-WAN

• Load-Balance/Route Policy
  (The Gigabit Ethernet interface and USB mobile can be used either for WAN-backup or load balancing.)
• WAN Connection Failover

• Packet Forwarding Acceleration*
• DHCP Client/Relay/Server
• IGMP Snooping/Proxy V2 and V3
• Triple-Play Application
• Dynamic DNS
• NTP Client
• Call Scheduling
• RADIUS Client
• DNS Cache/Proxy and LAN DNS
• UPnP 30 sessions
• Multiple Subnets
• Port-based/Tag-based VLAN (802.1q)
• Routing Protocol:
  • Static Routing
  • RIP V2

• Web-based User Interface (HTTP/HTTPS)
• Quick Start Wizard
• CLI (Command Line Interface, Telnet/SSH)
• Administration Access Control
• Configuration Backup/Restore
• Built-in Diagnostic Function
• Firmware Upgrade via TFTP/FTP/HTTP/TR-069
• Logging via Syslog
• SNMP Management MIB-II
• Management Session Time Out
• 2-level Management (Admin/User Mode)
• TR-069
• TR-104
• LAN Port Monitoring
• Support Smart Monitor (50 clients)
• Central AP Management (20 nodes)
• Central VPN Management (Up to 8 Remote Routers)

QoS :
Guarantee Bandwidth for VoIP
Class-based Bandwidth Guarantee by
User-defined Traffic Categories
DiffSer v Code Point Classifying
4-level Priority for Each Direction (Inbound
/Outbound)
Bandwidth Borrowed
Session Limitation
Bandwidth Limitation
Layer-2 (802. 1p) and Layer-3 (TOS/DSCP)
QoS Mapping

• Up to 50 VPN Tunnels
• Protocol : PPTP, IPsec, L2TP, L2TP over IPsec
• Encryption : MPPE and Hardware-based AES/DES/3DES
• Authentication : MD5, SHA-1
• IKE Authentication : Pre-shared Key and Digital Signature (X.509)
• LAN-to-LAN, Teleworker-to-LAN
• DHCP over IPsec
• IPsec NAT-traversal (NAT-T)
• Dead Peer Detection (DPD)
• VPN Pass-through
• VPN Wizard
• mOTP
• SSL VPN: 25 Tunnels
• VPN Trunk (Load Balance/Backup)

Firewall

• Multi-NAT, DMZ Host, Port-redirection and Open Port
• Object-based Firewall, Object IPv6, Group IPv6
• MAC Address Filter
• SPI (Stateful Packet Inspection) (Flow Track)
• DoS/ DDoS Prevention
• IP Address Anti-spoofing
• E-mail Alert and Logging via Syslog
• Bind IP to MAC Address
• Time Schedule Control
• User Management

CSM

• (Content Security Management)
• IM/P2P Application
• GlobalView Web Content Filter (Powered by CYREN )
• URL Content Filter :
• URL Keyword Blocking (Whitelist and Blacklist)
  Java Applet, Cookies, Active X, Compressed, Executable, Multimedia File Blocking,
• Excepting Subnets

• Temperature   Operating : 0°C ~ 45°C
• Temperature  Storage : -25°C ~ 70°C
• Humidity :10% ~ 90% ( non-condensing )
