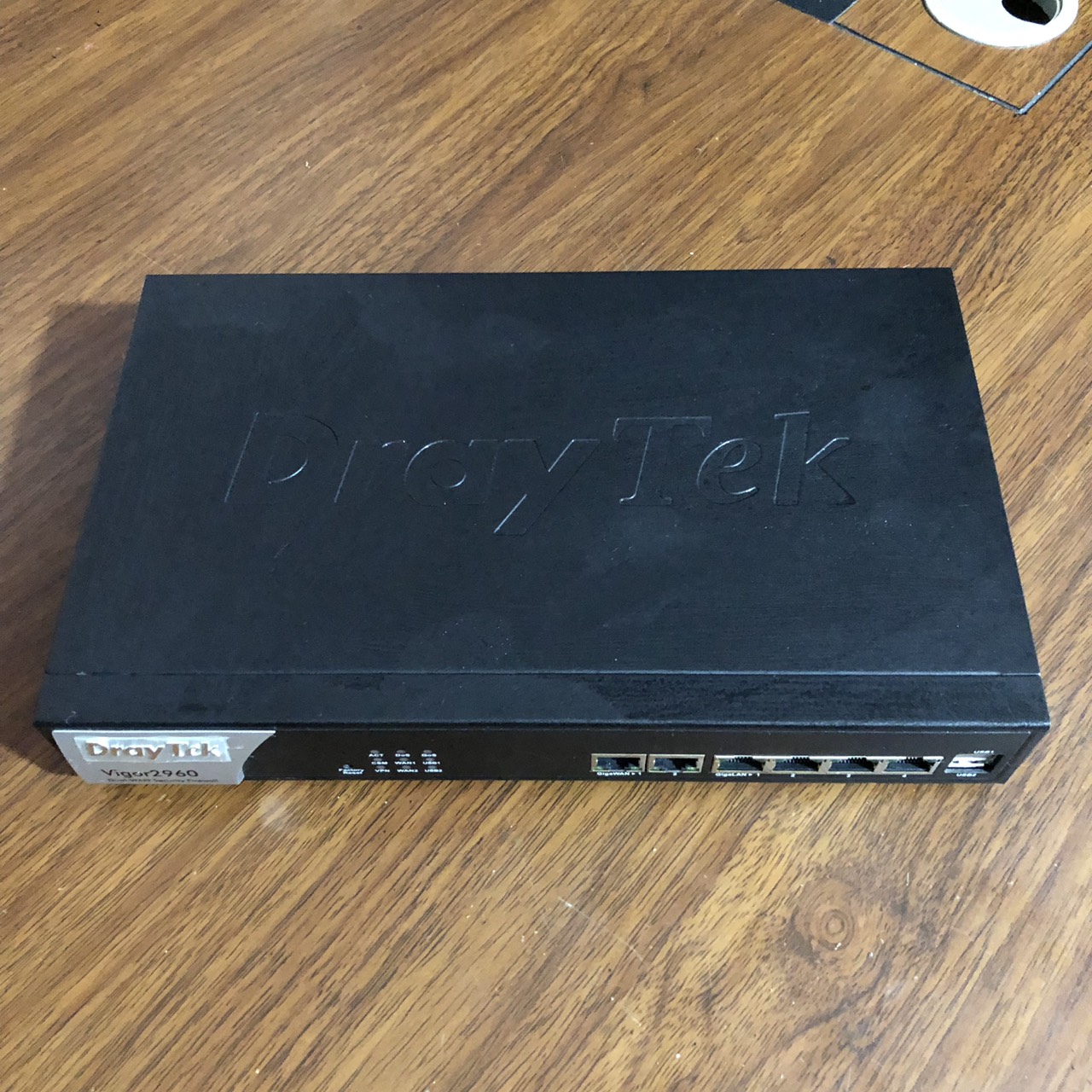

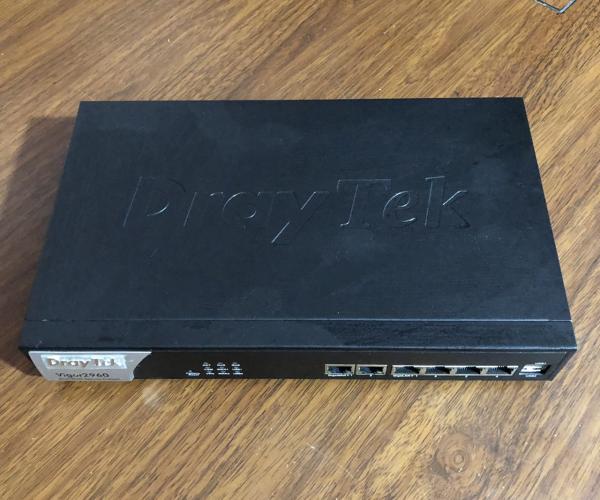

DrayTek Vigor2960 - Khả năng chịu tải 200 users

• 4 x 10/100/1000Based-Tx LAN Switch, RJ-45
• 2 x 10/100/1000Based-Tx WAN1 Port, RJ-45
• 2 x USB Host 2.0 (for Printer / 3.5G USB Modem)

• Power Adapter AC100-240V/ 1.0A
• Max. Power 19 watt

• 1 x Factory Reset Button

IP Protocol

• Ipv4
• Ipv6

WAN Protocol

• Ethernet: PPPoE, PPTP, DHCP client, Static IP, L2TP*, IPv6 Ready

Dual WAN

Outbound Policy Based Load Balance

• Allow your local network to access Internet using multiple Internet connections with high-level of Internet connectivity availability
• Two dedicated Ethernet WAN ports (Gigabit WAN)
• WAN Fail-over or load balance connectivity

 Hardware NAT

• DHCP Client/Relay/Server
• DHCP Option: 1,3,6,51,53,54,58, 59,60,61,66,125
• IGMP v1/v2c
• Dynamic DNS
• NTP Client
• DNS Cache/Proxy
• UPnP up to 500 Sessions
• Wake on LAN
• Multi Subnet LAN (base on VLAN)
• Routing Protocol:
  • Static Routing
  • RIP v1/v2
  • OSPF
  • BGP

• Web-based User Interface (HTTP/HTTPS)
• Quick Start Wizard
• CLI (Command Line Interface, Telnet/SSH)
• Administration Access Control
• Configuration Backup/Restore
• Built-in Diagnostic Function
• Firmware Upgrade via TFTP/HTTP/TR-069
• Logging via Syslog
• SNMP Management MIB-II
• Session Time Out Management
• CVM support (device) : 12
• Multi-level Management (Admin/User Mode)
• Time Schedule Control
• User Management
• support USB temperature sensor
• SMS/Email Alert
• TR-069

• QoS :
  • Guarantee Bandwidth for VoIP
  • Class-based Bandwidth Guarantee by User-defined Traffic Categories
  • DiffServ Code Point Classifying
  • Multi-level priority for each direction (Inbound/Outbound)
• Bandwidth/Session Limitation
• 802.1p and Layer-3 (TOS/DSCP)QoS Mapping

• Up to 200 VPN Tunnels
• Protocol: PPTP, IPSec, L2TP, L2TP over IPSec
• Encryption: MPPE and Hardware-based AES/DES/3DES
• Authentication: Hardware-based MD5, SHA-1
• IKE Authentication: Pre-shared Key and Digital Signature (X.509)
• LAN-to-LAN, Teleworker-to-LAN
• DHCP over IPSec
• NAT-Traversal (NAT-T)
• Dead Peer Detection (DPD)
• VPN Pass-through
• VPN Wizard
• SSL VPN

 Firewall

• Object-based Firewall
  • IP Object
  • Service Type Object
  • Keyword Object
  • File Extension Object
  • IM/P2P Object (APP Control)
  • Protocol Object
  • Web Content Object
  • Time Schedule Object
• IP Filter, Application Filter, MAC Address Filter
• SPI (Stateful Packet Inspection)
• DoS Defense
• Port Block
• Bind IP to MAC Address
• E-mail Alert and Log via Syslog

CSM (Content Security Management)

• Object-based:
  • URL Control Filter
  • Web Content Filter
  • APP Enforcement (IM/P2P Blocking)

 Central Management

• Central VPN management
• Central AP management
• Central Switch management

 Switch

• IGMP Proxy/Snooping*
• Tag-based (802.1q) VLAN
• Up to 20 VLANs
• Port-based VLAN

• 3.5G WAN (1.0.7 support 3G modem x2)*
• FileSystem :
  • Support FAT32/FAT16 File System
  • Support FTP Function for File Sharing

• Temperature Operating : 0°C ~ 45°C
• Storage : -25°C ~ 70°C
• Humidity 10% ~ 90% ( non-condensing )
